30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV
30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV
30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV
30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV
30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV
30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV
itreplacements

30MW Metal Fiber Optic Visual Fault Locator Red Laser Cable Tester Test Tool with LC/SC/ST/FC Adapter for CATV

Regular price $40.99 $40.99 Unit price per
Shipping calculated at checkout.

30MW 30km Fiber Optic Visual Fault Locator, Red Laser Cable Tester Cale Test Tool FC Male to LC Female Adapter For LC/SC/ST/FC

Features:

- MQW LD optical source

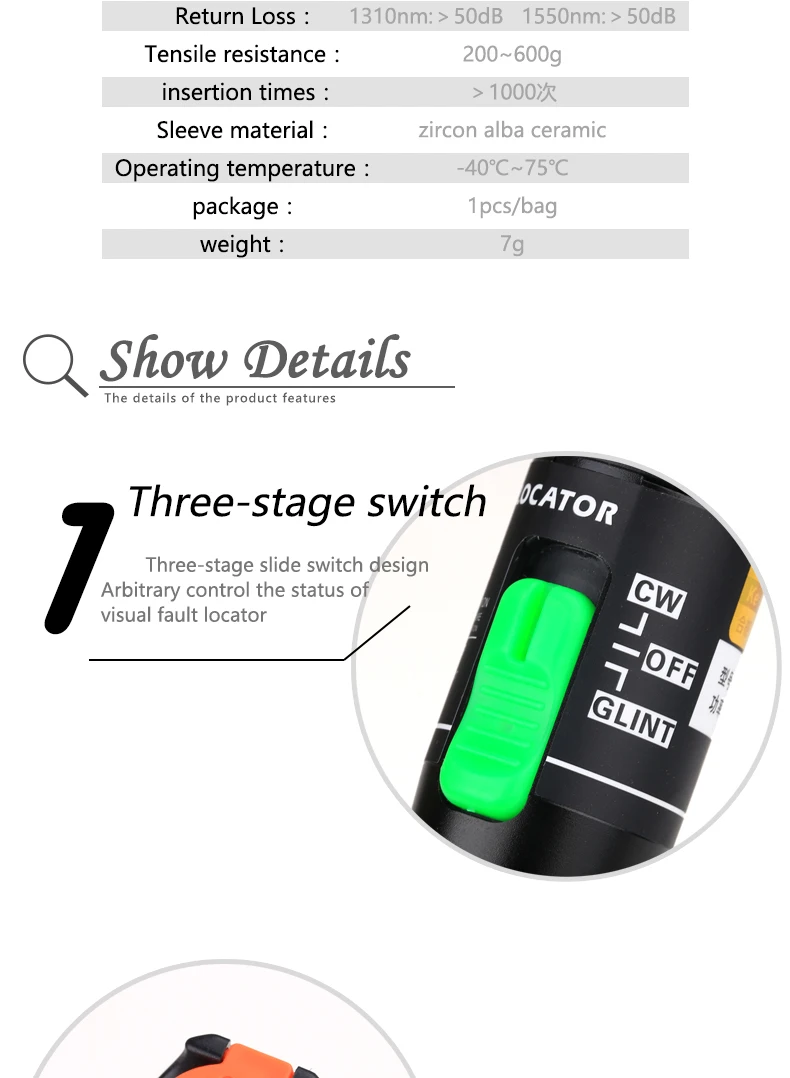

- Operating mode: CW and GLINT

- FC, SC, ST,LC General interface

- Long inspection distance

- Steady power output

- Sturdy and durable shell

- Pen pattern design, convenient for use and carry

Function:

- Locate the fiber failure, such as fracture and bend

- Failure inspection in OTDR blind zone

- Fiber recognition from head face to end face

- Mechanical transition point optimization

Application:

- Telecom, CATV project

- PDS construction and maintenance

- Optical component manufacture and research

- Other fiber project

Technical Parameter:

- Wavelength: 650+/- 10nm

- Fiber mode: 2.5 mm Universal

- Output power: 30mW

- Inspection distance: 18-25km

- Electrical source: Two 1.5V Batteries (NOT include)

- Working time of batteries: More than 15 hours

- Operating Temperature: -10- +60 degree C

- Storage Temperature: -20- +70 degree C

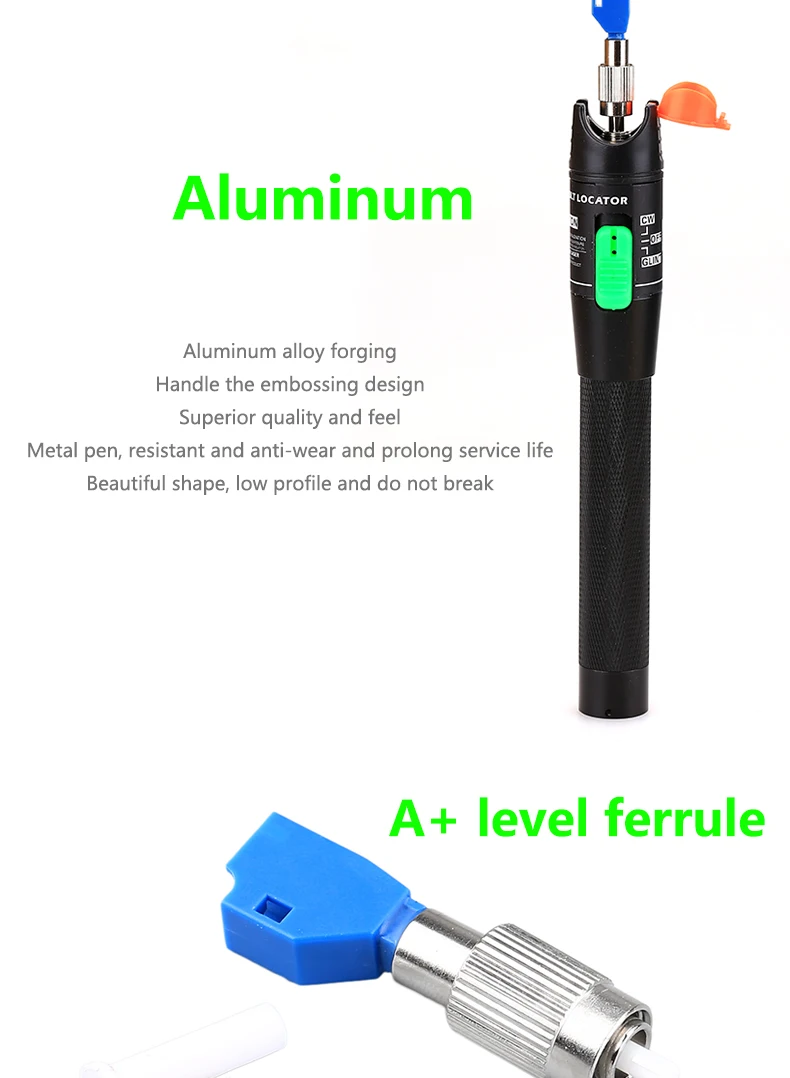

- Material of shell: Alum-alloy

- Dimension: Diameter 27*168mm

- Weight: About 160g

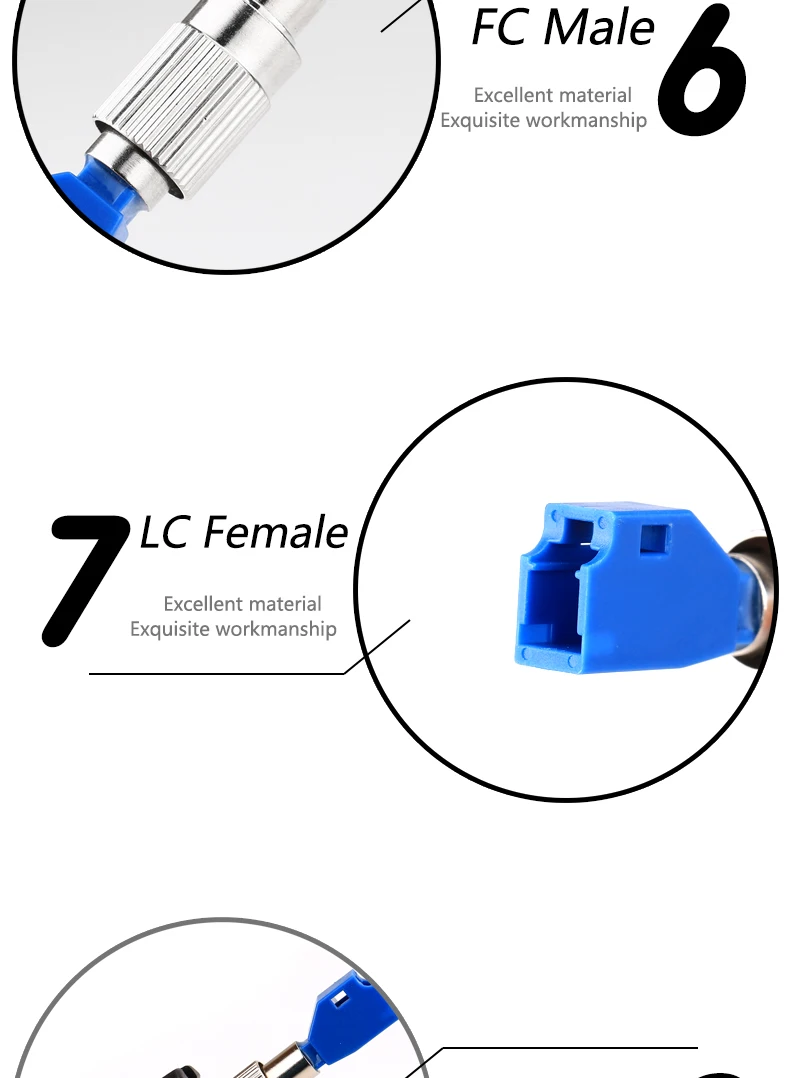

FC-LC fiber adapter:

-Insertion loss: 0.20dB

-Mating durability: 500

-Receptacle retention force: 1~2.5N

-Drop test: drop height 1m,5 drops

-Operation temperature: -25°c to +70°c

Package include:

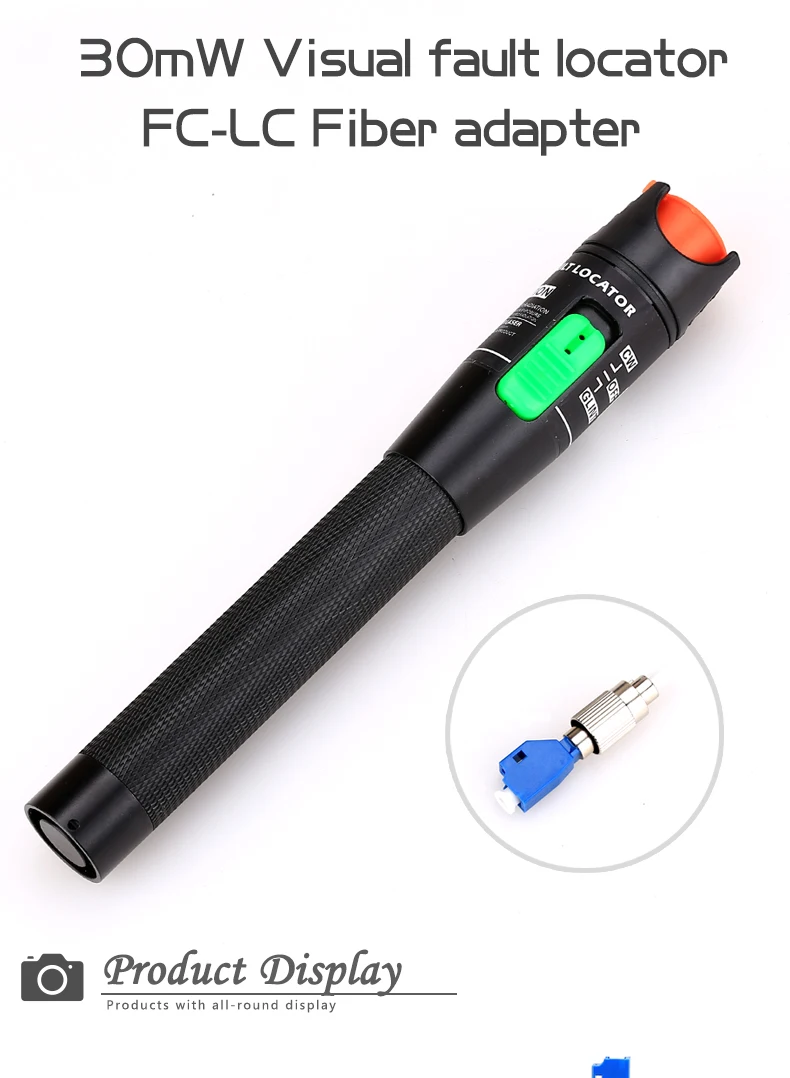

1x 30mw visual fault locator

1x FC-LC Fiber adapter

1xVisual Fault Locator Bag

1XLanyard
